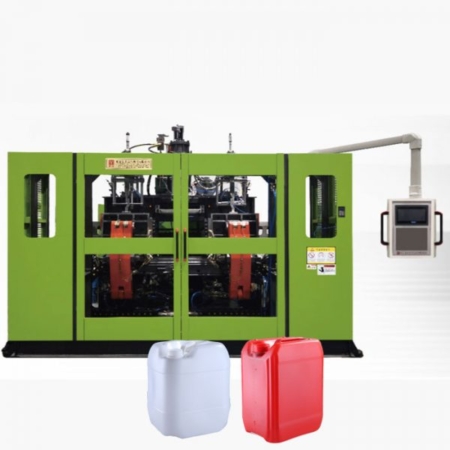

H90-12LII extrusion blow molding machine

Single / double-station, single head, fully automatic extrusion blow molding machine, with crank-arm champing system.

Suitable for 1L-12L PE, PP bottle, like motor oil bottle, lubricating oil container.

Suitable to connect with different automation equipment, reduce labor costs and increase production efficiency.

The die head can be changed to double-die, three-die and four-die, to produce smaller capacity hollow products with multiple specifications, increase production and reduce energy consumption.

Also can add the liquid line function to enrich the product line.

Category 6L-25L

H90-12LII extrusion blow molding machine description

		Unit	H90-12II
Main parameter	Station		Double
	Max. Product Volume	L	12
	Suitable Raw Material		PE,PP……
	Dry Cycle	pcs/h	600×2
	Machine Size	L×W×H(m)	4.6×3.1×2.8
	Machine Weight	Ton	11
Plasticizing system	Screw Diameter	mm	90
	Plasticizing Capacity	kg/h	140
	Screw Heating Zone	Zone	4
	Screw Drive Power	KW	37
	Screw Heating Power	KW	8.8
Extrusion die head	Continue Die Head
	NO. of Heating Zone	Zone	4
	Die Heating Power	KW	3
	Max. Die Diameter	mm	200
Opening and clamping system	Mold Moving Stroke	mm	750
	Clamping Force	KN	120
	Mold Stroke	mm	280-750
	Mold Template Size	W×H(mm)	570×540
	Max.Mold Size	W×H(mm)	570×500
Hydraulic	Oil Pump Power	KW	11
Air and water consumption	Blowing Pressure	Mpa	0.6
	Air consumption	M³/Min	0.8
	Cooling Water Pressure	Mpa	0.3
	Water Consumption	L/Min	60

Screw	Adopt high-performance nitralloy steel screw to ensure the material be plasticized evenly and completely;
	Good plasticizing capability, high output;
	Transducer adjusts speed and collects temperature-control signals to prevent the screw from cold starting.
Speed Reducer	Hard-teeth, low noise & wear-resistant speed reducer
Machine Barrel Screw	38CrMoALA high quality nitrogen steel
Heating Zone	3 Zone Casting, aluminum heater
Extrusion Motor	Three phase asynchronous motor (380V、50HZ)
Cooling fan	3 zones
EXTRUCTION SYSTEM
Die Head	38CrMoALA high quality nitrogen steel
Heating Zone	3 zone, heat coil of stainless steel
Die Heat Huff	Pressure and capacity can be adjusted
Preform Adjustment	Automatic
Heat insulation	By heat insulating board between accumulator and hydraulic cylinder
OPENING AND CLAMPING SYSTEM
Clamping structure	Three tie bar and three cylinder, enough power
Molds moving structure	Two linear rolling guideway, high precision
Mold Platen (W×H)	300×320mm, suitable to install different sizes of molds
ELECTRIC CONTROL SYSTEM
Programmable Logic Controller	Japanese MITSUBISHI PLC, famous brand
Programmable Logic Controller	Stable and perfect performance, high precision
Touch Screen	Colorful touch screen, autoalarm, self-diagnose the system (Taiwan Hitech Screen Brand)
Proximity Switch	Taiwan Riko Brand
Contactor	France Schneider
Airbreak Switch	France Schneider
Motor	Siemens Beide Three Phase Motor
Inverter	Taiwan Delta Brand
Temperature Control	Self-regulation
Temperature Module	MITSUBISHI /TAIWAN 7018RP automatic temperature module, digital
Action control	Japanese MITSUBISHI, programmable
Protection Function	Automatic alert and breakdown feedback, double protection of mechanical apparatus
HYDRAULIC SYSTEM
Function	Proportion pressure controller, changing direction quickly and softly
Oil pump motor	three phase asynchronism motor (380 V, 50 HZ) (Taiwan Hightech Brand)
Hydraulic pump	Vane pump
Hydraulic valve	Imported hydraulic components—(YUKEN/Taiwan Northman Brand)
Pipes	Bilayer high pressure blast pipes
Cooling Mode	Water cooler and oil cooler separately
PNEUMATIC SYSTEM
Component	Imported famous brand pneumatic parts
Valve	TAIWAI AIRTAC
PARISON CONTROL SYSTEM
Parison Programmer	Japan Moog 100 Points
Servo valve	Japan Moog
COOLING SYSTEM
Three cooling ways	Mold、barrel、oil box adopt independent cooling waterway
Cooling Medium	water
Colling water consumption	Underground water or provided by Water chiller
Water Pressure	0.2-0.6 (Mpa)
