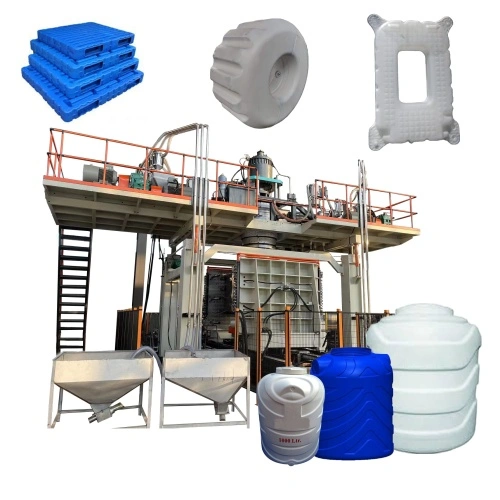

Water Tank Blow Mold Machine-3000L -1

Category 3000L Series

Water Tank Blow Mold Machine-3000L -1 description

We can manufacture one – to – ten – layers production Blow Molding Machines

Outer layer: HDPE material with UV protection, natural or pigmented.

Middle layer: Use regrind material to reduce product cost,It can also serve as adhesive layer,

Evoh layer according to product application.

Inner layer: 100% Virgin material Food Grade.Such as:

Outer layer-15%

Middle layer-70%

Inner layer-15%

Destriptions

Model	YY-3000-1	YY-3000-2	YY-3000-3	YY-3000-4	YY-3000-5	YY-3000-6
Product range	300-2000L
Machine dimension(LxWxH)	10x7x8m	10x7x8m	10x7x8m	12x13x8m	12x13x8m	12x13x8m
Average power consumption	170kw	200kw	260kw	3200kw	340kw	360kw
Total power	300kw	430kw	550kw	550kw	570kw	640kw
Die-header
Accumulator size	90kg	90kg	90kg	90kg	90kg	90kg
Heating power	80kw	90kw	100kw	110kw	110kw	120kw
Extrusion system
Plasticizing capacity	500kg/h	550kg/h	600kg/h	600kg/h	650kg/h	700kg/h
Heating power	55kw	70kw	80kw	88kw	90kw	96kw
Mold clamping unit
Clamping platen size	2100x2200x60mm
Max mold size	1700x2400mm
Clamping force	2200kn
Hydraulic system
Main oil pump power	55kw
Small oil pump power	7.5kw
