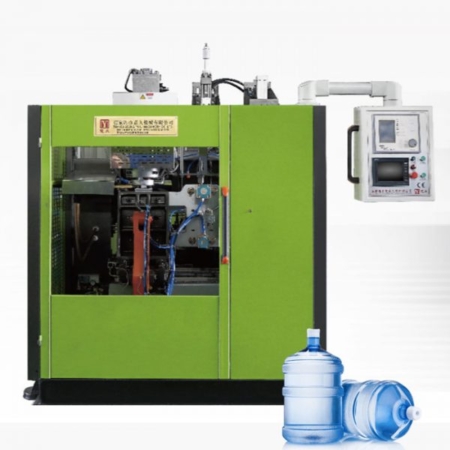

H82PC-25L extrusion blow molding machine
This machine model is only for PC material bottle, suitable to produce PC bottle under 25L;
High production, OUTPUT FOR 5 Gallon is 70-80 pcs/h.
Fully automatic design, audo de-flashing unit, online modify mouth. Robot pick ready bottle to conveyor belt.
Single station, single die head with crank-arm clamping system, to provide enough clamping force.
H82PC-25L extrusion blow molding machine description
Play Video
Previous
Next
| Unit | H82PC-25L | ||
| Main parameter | Station | Single | |
| Max. Product Volume | L | 12 | |
| Suitable Raw Material | PC | ||
| Dry Cycle | pcs/h | 650 | |
| Machine Size | L×W×H(m) | 5×2.4×3.8 | |
| Machine Weight | Ton | 11.6 | |
| Plasticizing system | Screw Diameter | mm | 82 |
| PC Output | kg/h | 90 | |
| Screw Heating Zone | Zone | 6 | |
| Screw Heating Power | KW | 16 | |
| Extrusion die head | Continue Die Head | ||
| NO. of Heating Zone | Zone | 4 | |
| Die Heating Power | KW | 4.5 | |
| Max. Die Diameter | mm | 150 | |
| Opening and clamping system | Mold Moving Stroke | mm | 750 |
| Clamping Force | KN | 180 | |
| Mold Stroke | mm | 420-920 | |
| Mold Template Size | W×H(mm) | 620×680 | |
| Max.Mold Size | W×H(mm) | 600×680 | |
| Hydraulic | Oil Pump Power | KW | 45 |
| Air and water consumption | Blowing Pressure | Mpa | 1 |
| Air consumption | M³/Min | 1 | |
| Cooling Water Pressure | Mpa | 0.3 | |
| Water Consumption | L/Min | 130 | |
| Screw | Adopt high-performance nitralloy steel screw to ensure the material be plasticized evenly and completely; |
| Good plasticizing capability, high output; | |
| Transducer adjusts speed and collects temperature-control signals to prevent the screw from cold starting. | |
| Speed Reducer | Hard-teeth, low noise & wear-resistant speed reducer |
| Machine Barrel Screw | 38CrMoALA high quality nitrogen steel |
| Heating Zone | 3 Zone Casting, aluminum heater |
| Extrusion Motor | Three phase asynchronous motor (380V、50HZ) |
| Cooling fan | 3 zones |
| EXTRUCTION SYSTEM | |
| Die Head | 38CrMoALA high quality nitrogen steel |
| Heating Zone | 3 zone, heat coil of stainless steel |
| Die Heat Huff | Pressure and capacity can be adjusted |
| Preform Adjustment | Automatic |
| Heat insulation | By heat insulating board between accumulator and hydraulic cylinder |
| OPENING AND CLAMPING SYSTEM | |
| Clamping structure | Three tie bar and three cylinder, enough power |
| Molds moving structure | Two linear rolling guideway, high precision |
| Mold Platen (W×H) | 300×320mm, suitable to install different sizes of molds |
| ELECTRIC CONTROL SYSTEM | |
| Programmable Logic Controller | Japanese MITSUBISHI PLC, famous brand |
| Stable and perfect performance, high precision | |
| Touch Screen | Colorful touch screen, autoalarm, self-diagnose the system (Taiwan Hitech Screen Brand) |
| Proximity Switch | Taiwan Riko Brand |
| Contactor | France Schneider |
| Airbreak Switch | France Schneider |
| Motor | Siemens Beide Three Phase Motor |
| Inverter | Taiwan Delta Brand |
| Temperature Control | Self-regulation |
| Temperature Module | MITSUBISHI /TAIWAN 7018RP automatic temperature module, digital |
| Action control | Japanese MITSUBISHI, programmable |
| Protection Function | Automatic alert and breakdown feedback, double protection of mechanical apparatus |
| HYDRAULIC SYSTEM | |
| Function | Proportion pressure controller, changing direction quickly and softly |
| Oil pump motor | three phase asynchronism motor (380 V, 50 HZ) (Taiwan Hightech Brand) |
| Hydraulic pump | Vane pump |
| Hydraulic valve | Imported hydraulic components—(YUKEN/Taiwan Northman Brand) |
| Pipes | Bilayer high pressure blast pipes |
| Cooling Mode | Water cooler and oil cooler separately |
| PNEUMATIC SYSTEM | |
| Component | Imported famous brand pneumatic parts |
| Valve | TAIWAI AIRTAC |
| PARISON CONTROL SYSTEM | |
| Parison Programmer | Japan Moog 100 Points |
| Servo valve | Japan Moog |
| COOLING SYSTEM | |
| Three cooling ways | Mold、barrel、oil box adopt independent cooling waterway |
| Cooling Medium | water |
| Colling water consumption | Underground water or provided by Water chiller |
| Water Pressure | 0.2-0.6 (Mpa) |
